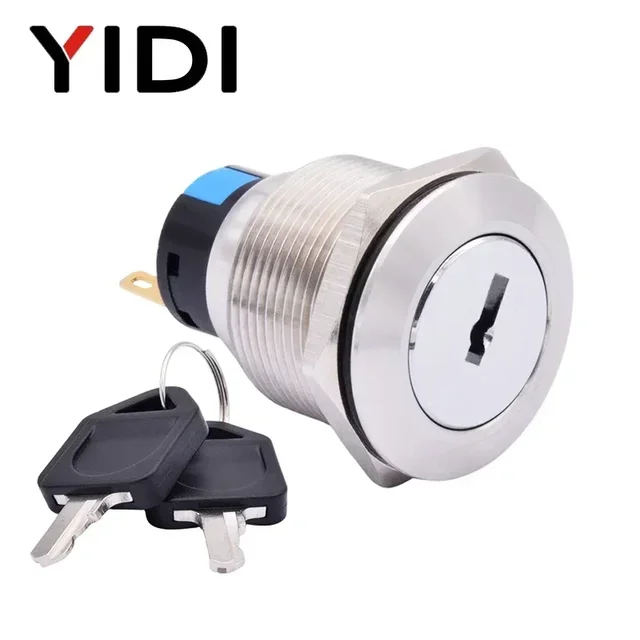

Waterproof Metal Rotary Key Selector Switch – Stainless Steel, Latching, 1NO1NC

From R173.23
  • Color:

  • Size:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    A durable and reliable Waterproof Metal Rotary Key Selector Switch made of stainless steel, featuring latching functionality. This switch is ideal for various applications where security and reliability are paramount.

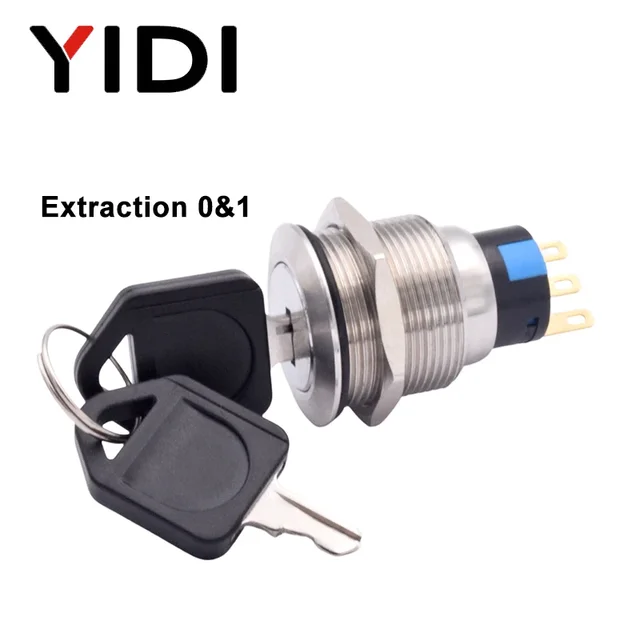

    Please note that our switch is extraction 0&1: The key can be pulled out when switch both in and off
    If need extraction only on 0, feel free to contact us.

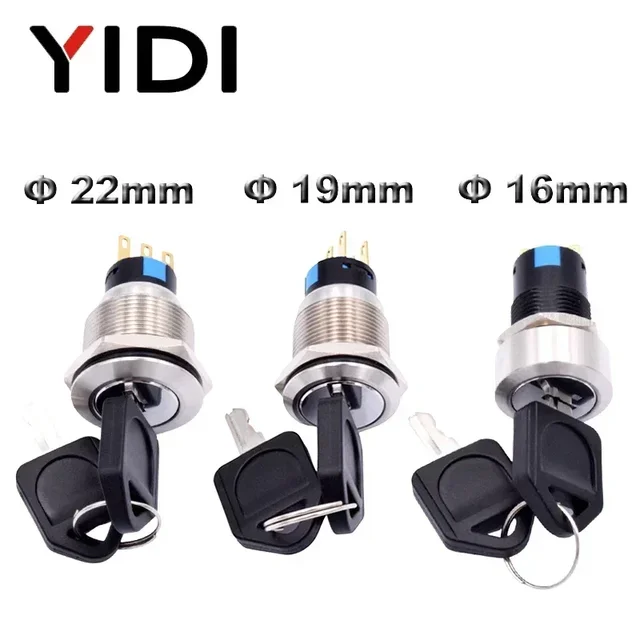

    YIDI 16mm 19mm 22mm Waterproof Metal Rotary Key Selector Switch 2 3 Position Stainless Steel Push Button Lock Switch Latching 1NO1NC

    Specification:

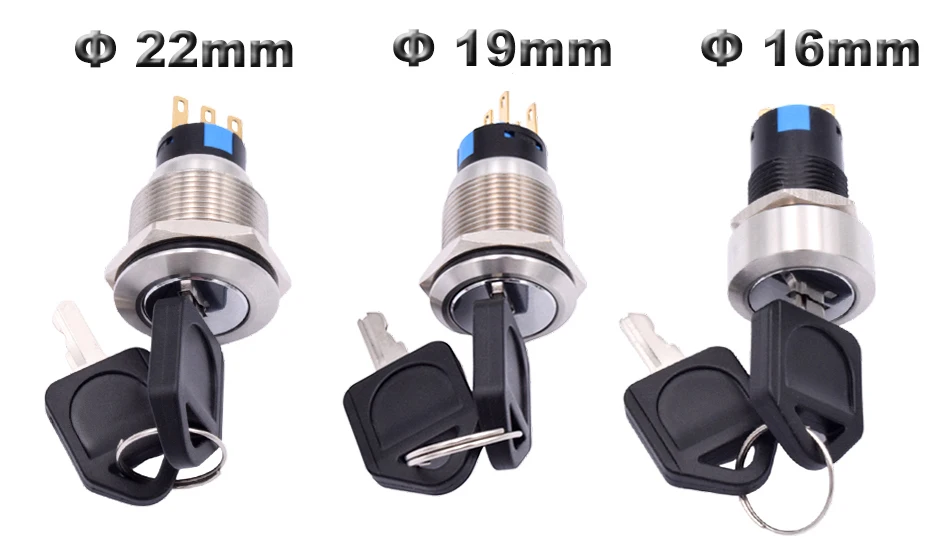

    Mounting Hole Diameter: 16mm/19mm/22mm
    Material: Stainless Steel
    Rating: 3A/250V

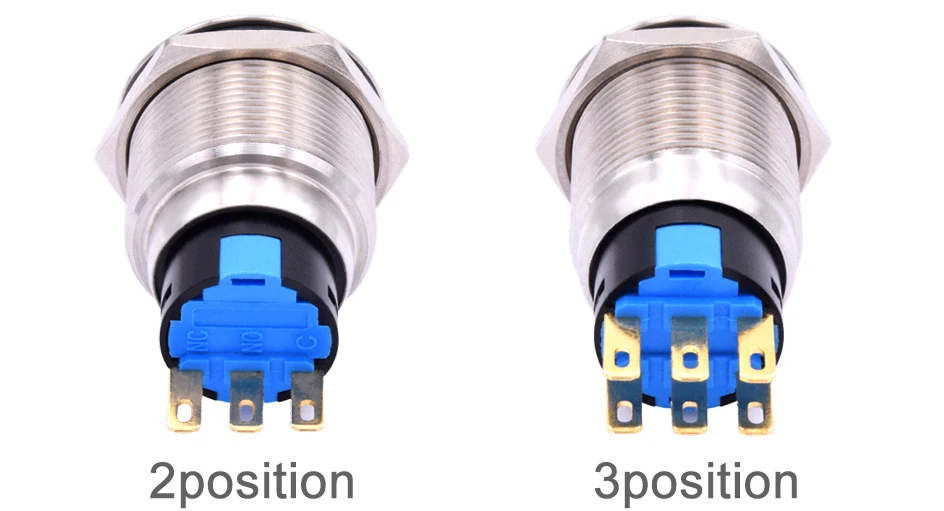

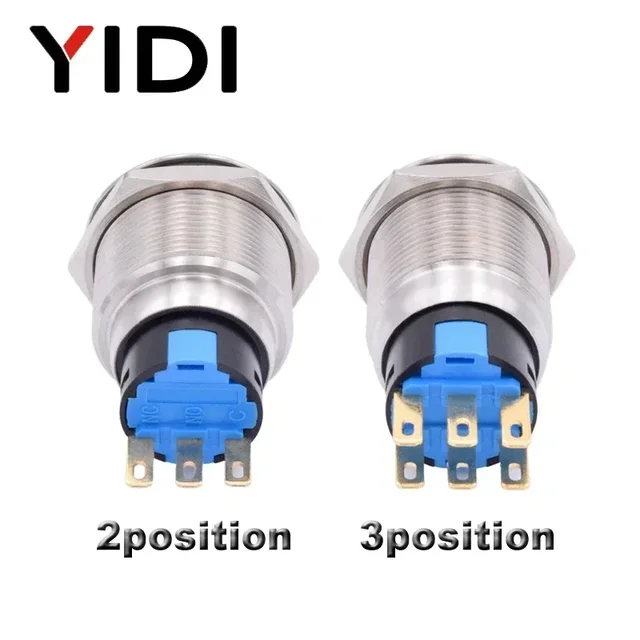

    Position: 2 postion(3pins)/ 3 position(6pins)
    Switch Function: Latching

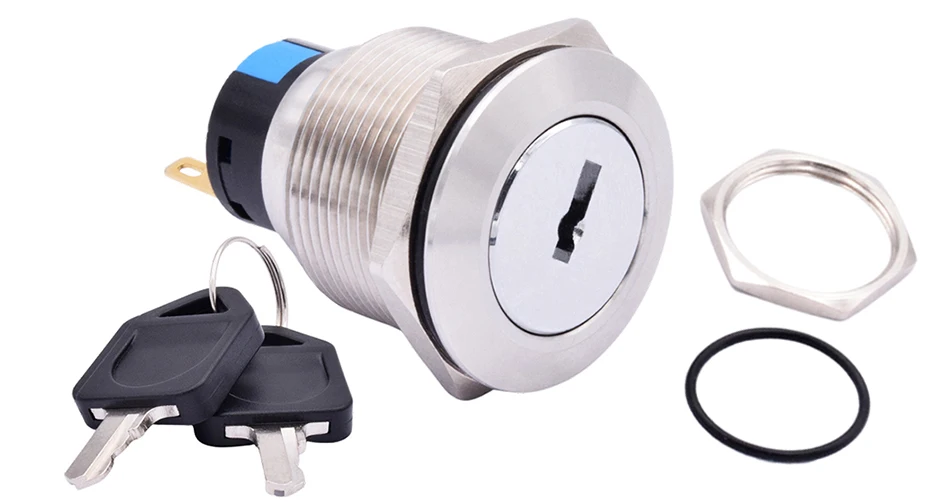

    Packing: 1 switch + 2keys + 1 o ring + 1 nut

    Customization service is available, feel free to contact us then.

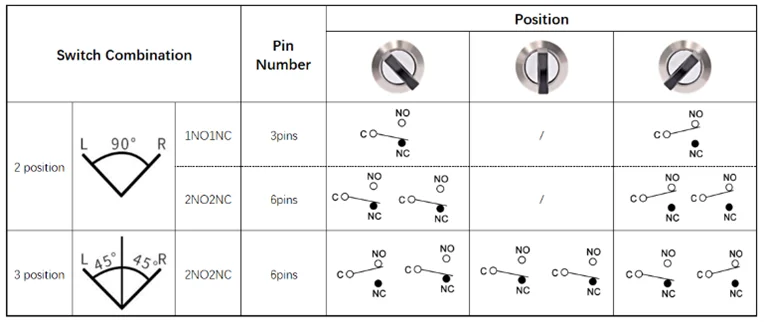

    Switch Inner Circuit Diagram

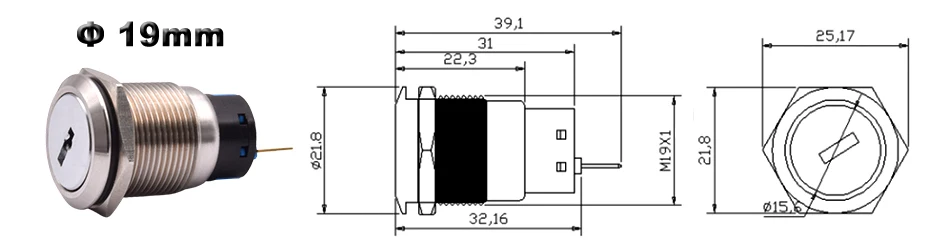

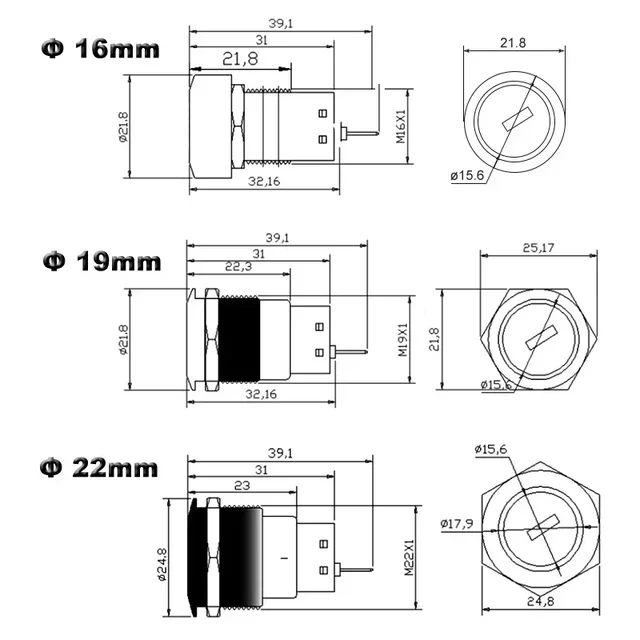

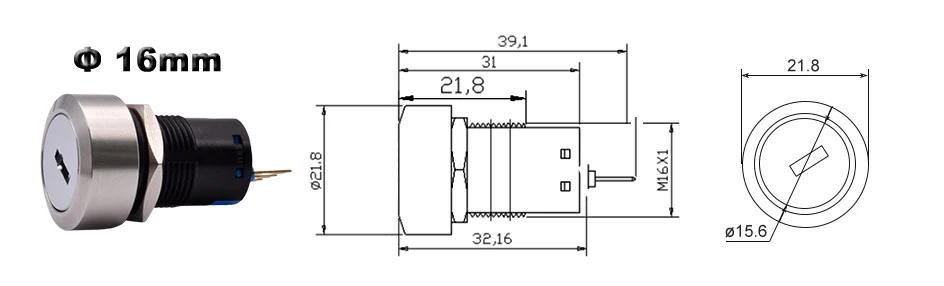

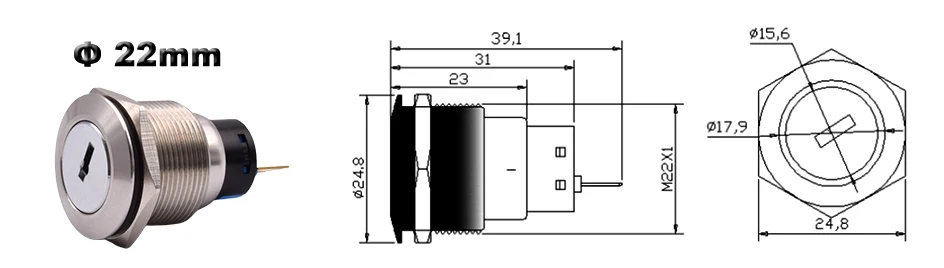

    Dimension

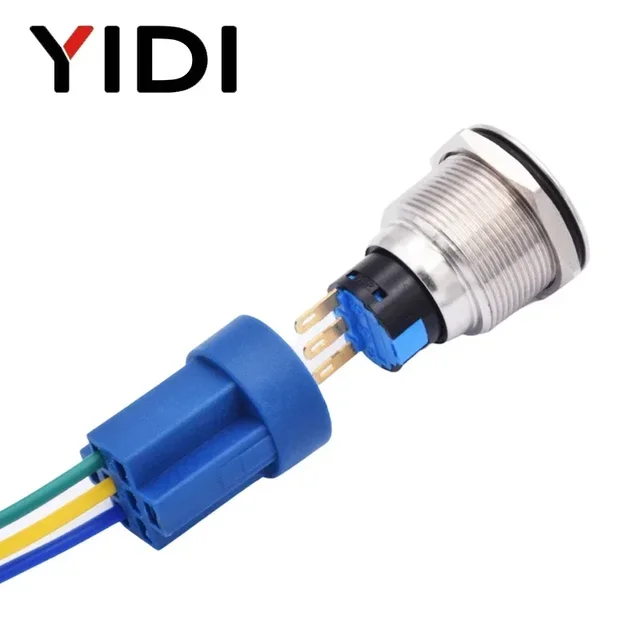

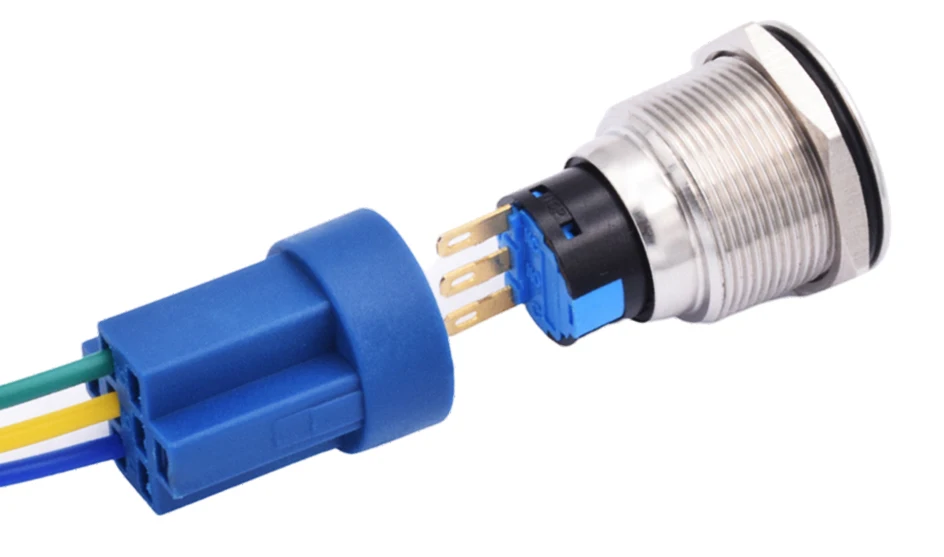

    Harness Connector with cable for button switch Key switch
    Easier & Fast Using
