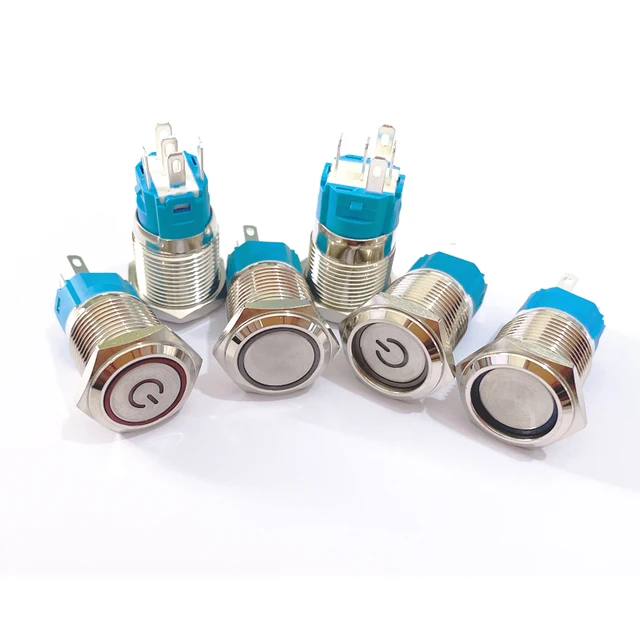

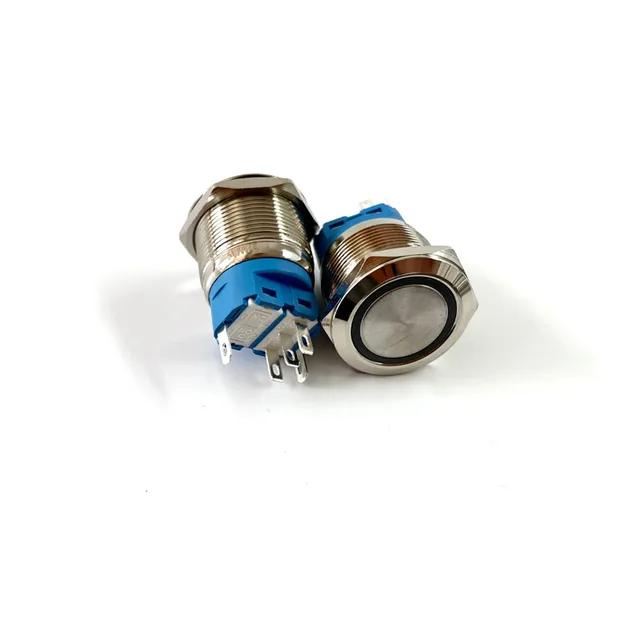

Waterproof Metal Push Button Switch LED Light Momentary Latching Car Engine Power Switch

From R135.83

  • Color:

  • Size:

  • Ships From:

  • Voltage:

  • Standard:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Enhance your car’s control with this waterproof metal push button switch. Choose between momentary and latching options to power up your engine with style. Available in multiple colors and sizes.

    Note: the connector needs to be purchased separately

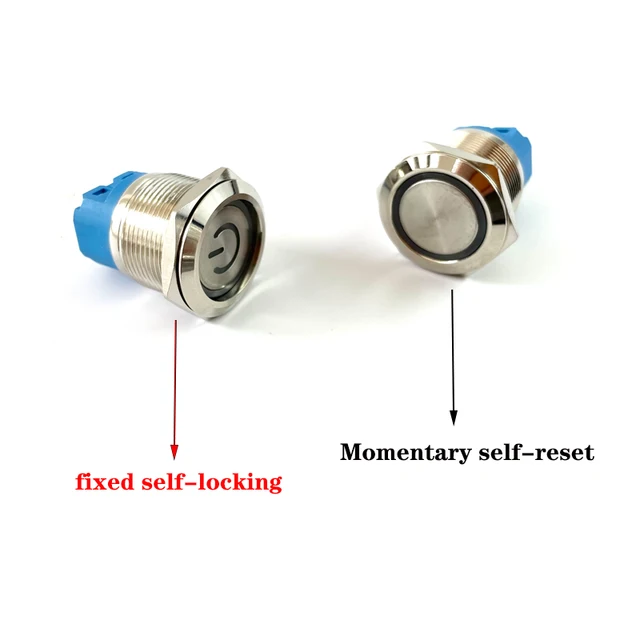

    Difference between auto-recovery button and auto-lock button:
    1. Self-recovery button: press this button to turn on the power (light on);
    Release your hand, the power will appear and turn off automatically (the light goes out)
    2. Self-locking button: press the power button, release your hand, and keep the button stationary (lit);
    Press the button again to display and turn off the power (the light goes out).
    Product parameters
    Head type: round head
    Housing material: metal
    Operation type: Momentary self-reset/fixed self-locking
    Emitting color: red / yellow / blue / green / white

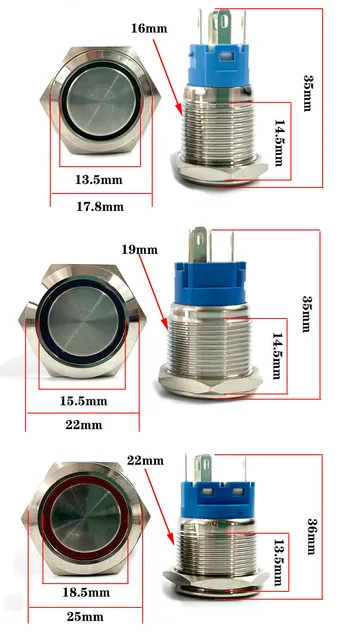

    Opening size: 12mm/16mm/19mm/22mm

    Very important: Because of the virus,the Economic shipping is slow,If you need buttons hurry,please choose Alistandard shipping

    1.What does the signal "NC" and "NO" means?

    "A" "+": positive pole of the led

    "LED" " – ": negative pole of the led
    " NC ": Normal Close
    " NO ": Normal Open
    " C " : Common

    2.How to connect?

    1.Connect " NO " and " C " : The circuit is alway open unless press the button.
    2.Connect " NC " and " C " : The circuit is alway close unless press the button.

    Various logo patterns can be customized, please contact online customer service

    12mm wiring diagram

    Press the switch, the load is energized, and the LED lights at the same time.
    Press the switch again, the button is reset, the load is powered off, and the LED goes out.

    Turn on the power, the LED lights, press the switch, and the load is energized.
    Press the switch again, the button is reset, and the load is powered off.
    Turn off the power and the LED goes out.

    Press the switch, the load is energized, and the LED turns off
    Press the switch again, the button is reset, the load is powered off, and the LED lights at the same time.

    Press the switch, the load is powered off, and the LED turns off at the same time.
    Press the switch again, the button is reset, the load is energized, and the LED lights at the same time.

    Turn on the power and the LED lights up. Press the switch, the load is powered off.
    Press the switch again, the button is reset, and the load is energized. Turn off the power and the LED goes out.
