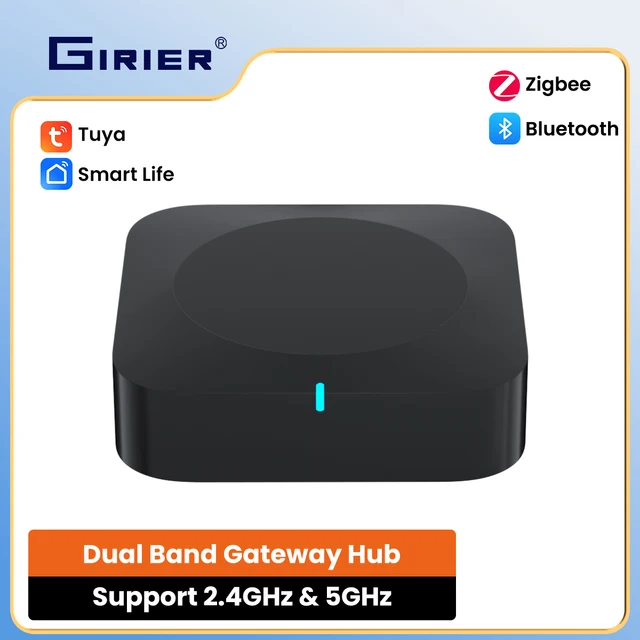

Ultimate Smart Hub: Wireless Multi-Mode Gateway Bridge for Home Automation Mesh Networking

ITEM DESCRIPTION

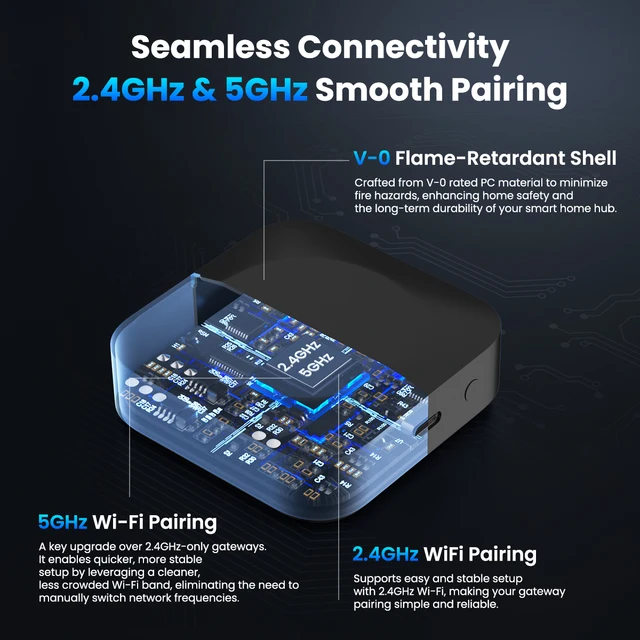

Seamless Dual-Band WiFi Connectivity

A key upgrade over standard hubs-this multi-mode gateway supports both 2.4GHz and 5GHz WiFi bands. You no longer need to manually switch your phone to 2.4G during pairing, ensuring a faster, smoother, and more stable setup experience in modern high-speed network environments.

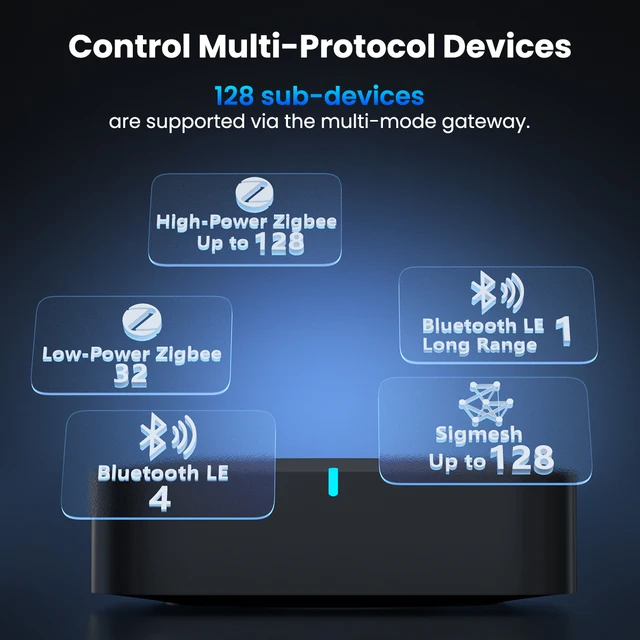

All-in-One Multi-Protocol Bridge

Consolidate your smart home with a single, powerful hub. It seamlessly bridges ZigBee 3.0, Bluetooth LE, and Sigmesh protocols, supporting up to 128 sub-devices. Manage everything from sensors and thermostats to curtain motors through one unified Tuya Smart or Smart Life App interface.

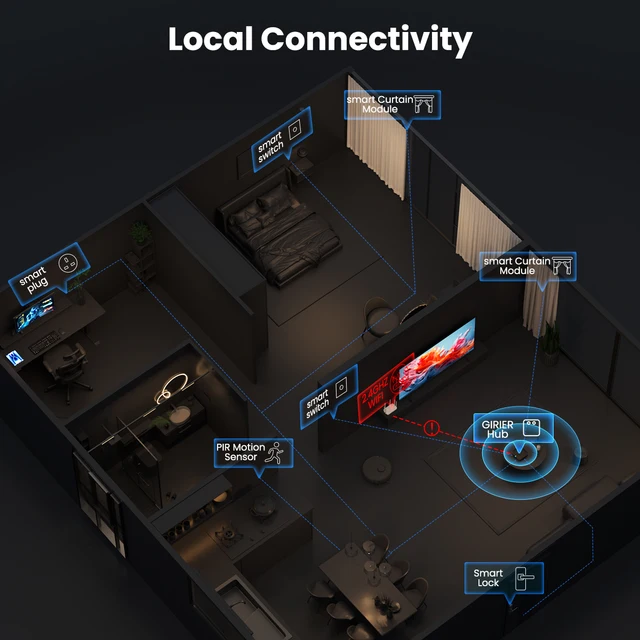

Stable Local Edge Automation

Your smart home stays functional even when the internet goes down. By shifting automation logic from the cloud to local edge processing, your pre-set scenes-like security sensors triggering lights-continue to execute reliably, ensuring 24/7 home safety without relying on an external server.

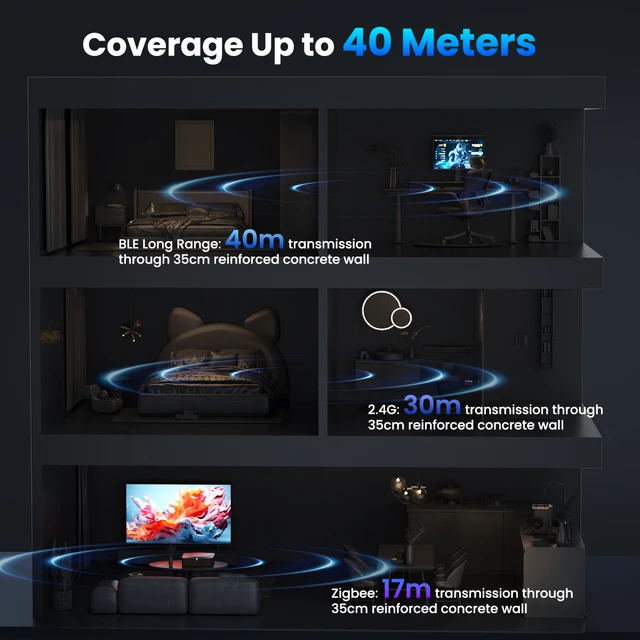

Superior Wall-Penetration & Range

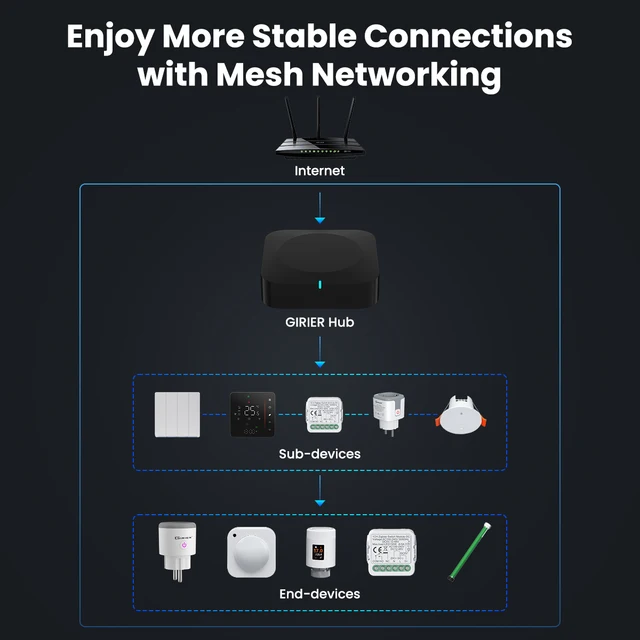

Experience stable connectivity in every corner of your home. Engineered to penetrate up to 35cm of reinforced concrete with an indoor range of 30 meters, this compact hub eliminates dead zones. Its robust mesh capability ensures that even the furthest sensors stay perfectly connected.

Voice-Ready Bridge with V-0 Safety

Built for long-term security with a V-0 flame-retardant PC shell. This hub acts as the essential bridge to voice assistants like Alexa, Google Home. Once connected, you can use hands-free voice commands to manage all your ZigBee and Bluetooth sub-devices effortlessly.

SPECIFICATION

Model Number: THP01-ZB-V5
Power Supply: 5V DC, max. 1 A
Operating Temperature: 0-40°C
Operating Humidity: 10-90%RH, non-condensing
Power Connector: USB Type-C
Cable Length: 0.5m
Dimensions: 66mmx66mmx20.4mm (Actual dimensions may vary; refer to the actual product.)
Coverage Distance: 30 Meters
Maximum Connect Devices: 128
2.4G Wi-Fi: Radio Frequency 2400.0-2483.5 MHz, Maximum Transmit Power +18dBm
5G Wi-Fi: Radio Frequency 5150-5875 MHz, Maximum Transmit Power +16dBm
BLE 5.0: Radio Frequency 2402-2480 MHz, Maximum Transmit Power +10dBm
Zigbee: Radio Frequency 2400-2483MHz, Maximum Transmit Power +11.5dBm
Working Temperature: -10℃-50℃
Working Humidity: 10%-90%RH(No condensation)

What's in the Box?

1*Multi-mode Hub
1*Power Cable
1*User Manual
