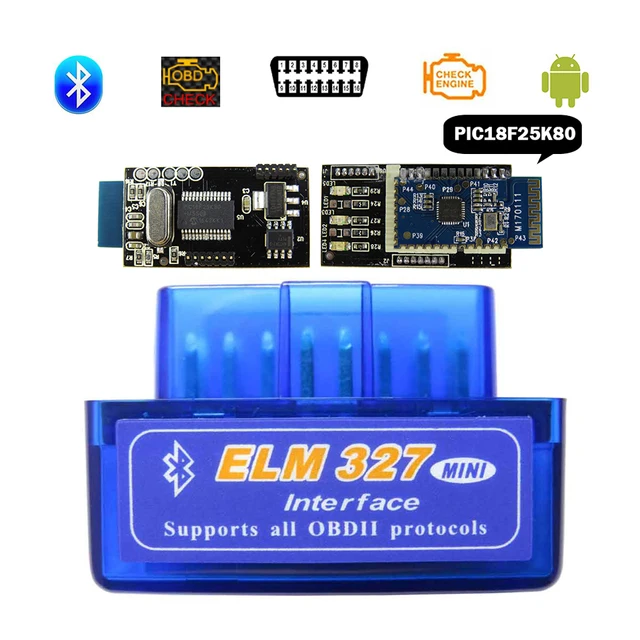

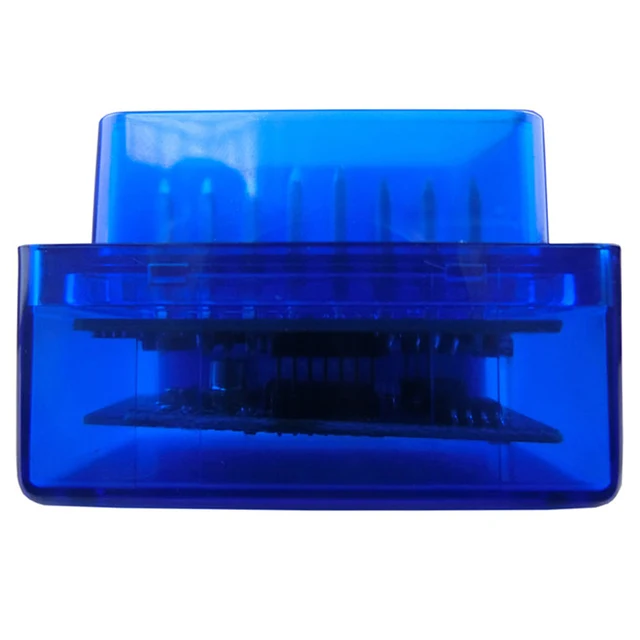

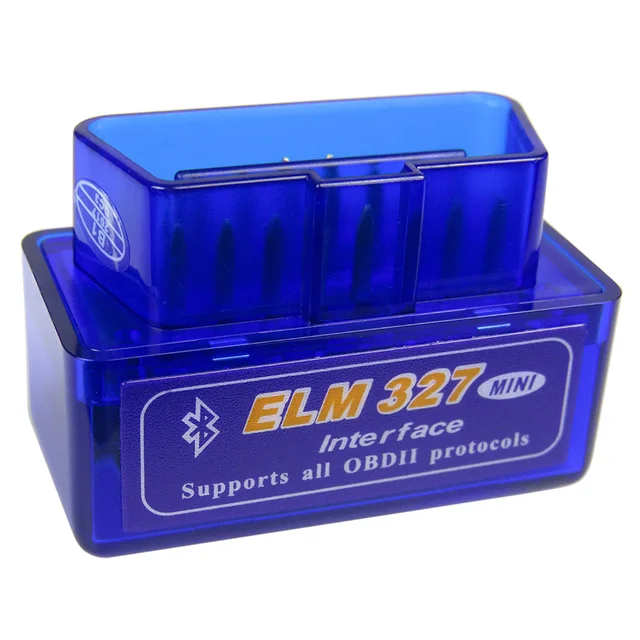

Super Mini ELM327 Bluetooth V1.5 OBD2 Car Diagnostic Scanner

ELM327 V1.5 Bluetooth Obd2 Scanner Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database)

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others…

Software Version:V2.1        Hardware Version:V1.5

Model Has One Of The Following Protocols:

1.SAE J1850 PWM (41.6 kbaud)

2.SAE J1850 VPW (10.4 kbaud)

3.ISO 9141-2 (5 baud init, 10.4 kbaud)

4.ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

5.ISO 14230-4 KWP (fast init, 10.4 kbaud)

6.ISO 15765-4 CAN (11 bit ID, 500 kbaud)

7.ISO 15765-4 CAN (29 bit ID, 500 kbaud)

8.ISO 15765-4 CAN (11 bit ID, 250 kbaud)

9.ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Buyer Tips:

We only provide English version software CD. But you can download the ELM327 Bluetooth software in otherlanguages.We have free ELM327 software download.It is suitable for all language software.

ELM327 Bluetooth can't support for IOS.(If you need an item which works on IOS, please buy our ELM327 WIFI OBDII)

The product must be car ECU protocol support can be used, if the buyer can not determine whether their car can be used, carefully shot.

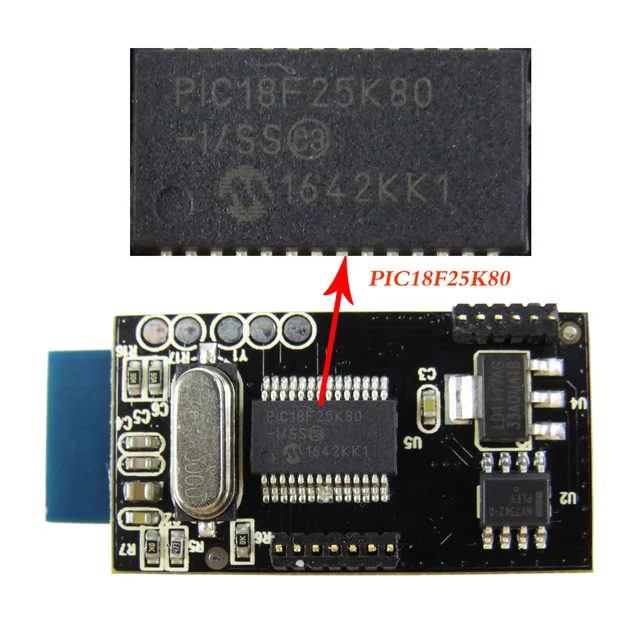

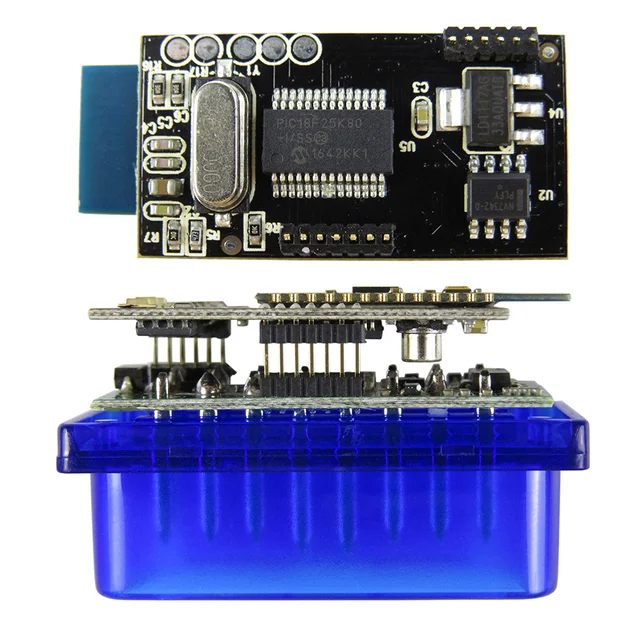

Does not support ABS and airbag detection.Real ELM327 v1.5 Bluetooth adapter OBDII OBD2 ELM 327 V 1.5 OBD 2 Auto Scanner For Android Car Diagnostic-Tool scanner This is Real V1.5 version bluetooth elm327. Hardware V1.5 , Supports SAE J1850 PWM and SAE J1850 VPW.

Genuine Hardware V1.5,it is more stable and supports more cars than ELM V2.1. Hardware V1.5 is More Powerfulthan V2.1.

Project Bluetooth password:0000 or 1234

This one can't support for Diesel or Trucks,thanks!!!

Support Languages:English ,Czench ,Danish,Genman,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,TurkishThis hardware can match many other software still!But most of them are not free!

Works for Windows98/ME/2000/XP/Vista & 7.

Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car

Super Mini ELM327 Bluetooth V1.5 Obdii Obd2 Auto Car Diagnostic Scanner Package List:

1pc x MINI ELM327 Bluetooth adapter OBDII / OBD2 ELM 327 for Android Torque Car Code Scanne

Note:If CD unreadable or damaged,please contact us send you download link .Do not open dispute or negative feedback. Thanks .

Tips before your purchase:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle under the hood in the engine compartment that clearly states "OBD II compliant or certified".

If TORQUE can read the adapter,but the adapter can't connect the ECU of car,prove the adapter work fine,but it don't support your car,we can't refund to you for this case,like this picture:
