Get real-time tracking with the MiCODUS ML500 GPS Tracker. With a long standby time and strong magnetic mounting, this tracker ensures accurate monitoring and easy installation for various vehicles and assets.

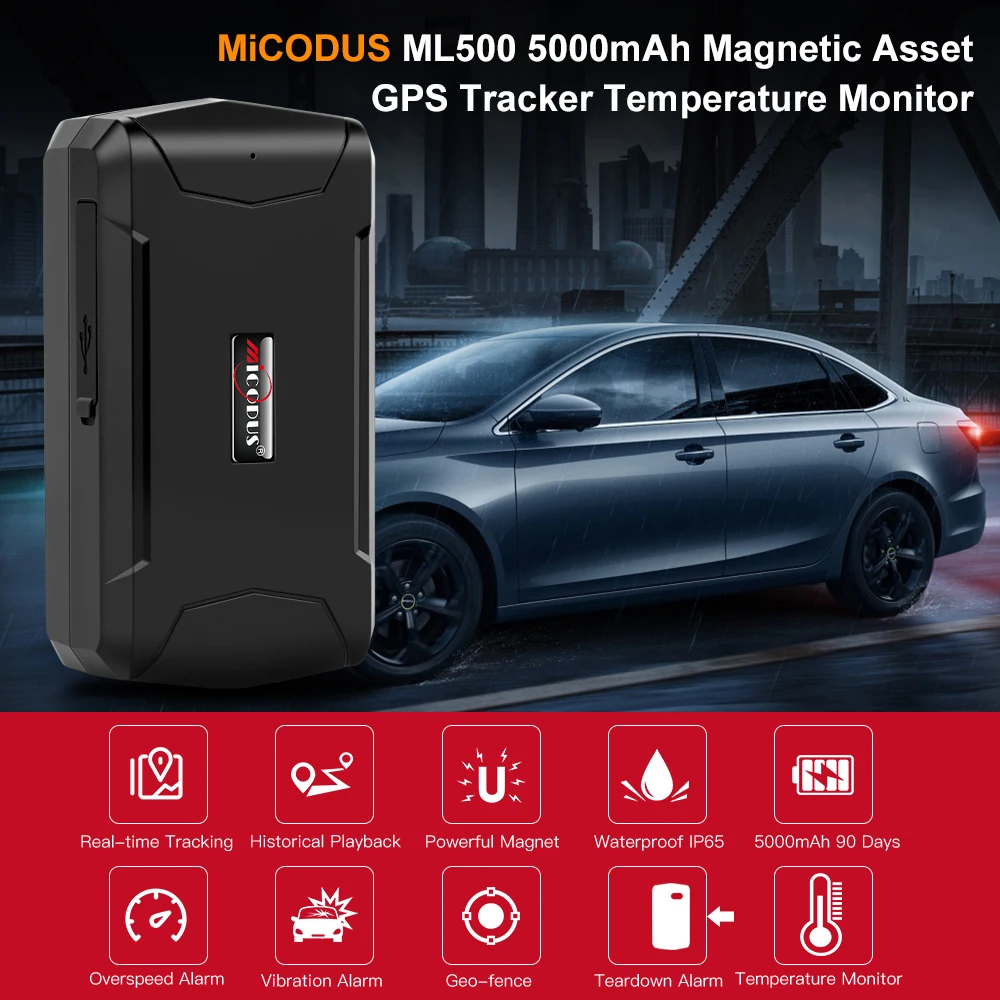

MiCODUS ML500 5000mAh Magnetic Asset GPS Tracker Temperature Monitor
ML500 Applications and Structure
Suitable for Car, Tax, Truck, Boat, Container, Asset etc.
Strong Magnetic Mounting
It has 6pcs built-in magnets, with super strong magnetic.can be installed very easily, all people will can manage it, no need professional installation.
Long Standby and Working Time
The device has built-in 3.7V 5000mAh Li-ion battery,can standby time up to 90 days and work 7-10 days.
IP65 Dust and Waterproof
Our MiCODUS ML500 has super water-resistant to ensure stable operation in tough environment. It is only effectively prevent dust from entering. but also don't worry about being splashed by water.

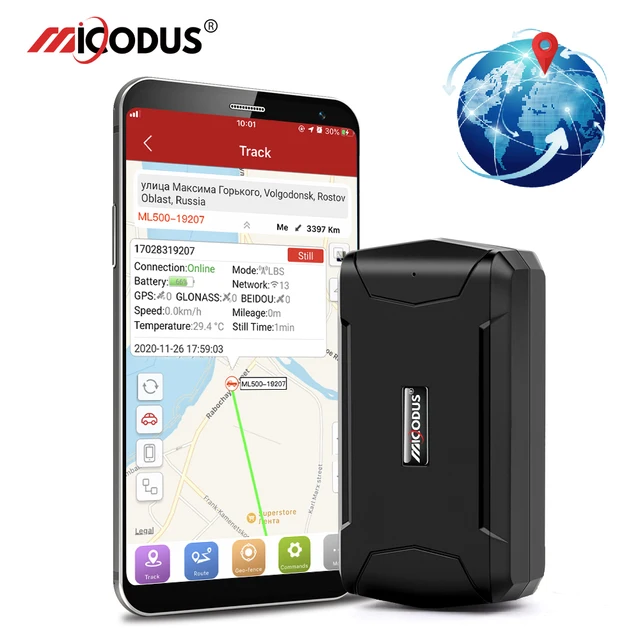

Real time Tracking
Real time tracking on Google maps. You will can realtime track your target on google maps via mobilephone, tablet and computer, and the minumum upload interval is 10 seconds.
History Route Playback
MiCODUS platform will record the history route data up to 6 months , It can help you to change your lifestyle about driving habits, fuel saving, environment friendly, Easily grasp where the vehicle has been there.
Temperature Monitoring
Our MiCODUS ML500 has built-in temperature sensor, it can detect the temperature of the surrounding environment, The error is within the reange of 1 to 2 degrees Celsius.
Multiple Working Modes
Our MiCODUS ML500 GPS Trackere has multiple working modes. you can switch the modes easily under different demands. this can help you to extend the battery life very much.
1.Tracking mode
2.Power saving mode
3.Hibernation mode

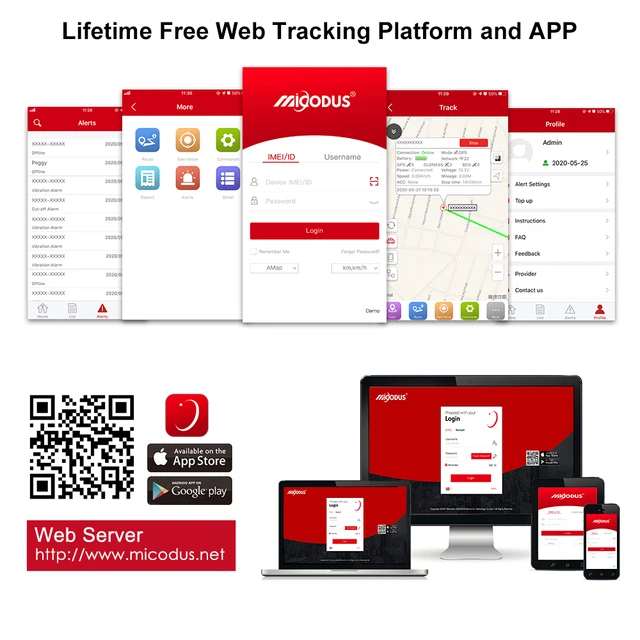

Lifetime Free Web & APP tracking platform :
Web tracking platform: www.micodus.net ,
APP: support iOS & Android , Micodus
There is demo account, please go to click the demo account butron to try it.
ID No. : on the back side of cover
Default password: 123456
Overview:
This Waterproof GPS Tracker MiCODUS ML500 is a 2G GSM GPS Tracker which is working based on the existing 2G GSM/GPRS network and GPS satellites, it can locate and monitor any targets remotely by SMS, mobile APP and web tracking software without any limit on the tracking distance! It adopts the most advanced technology of GPS and LBS and BEIDOU positioning. Besides, with built-in 6pcs powerful magnet, it can be installed very easily and tightly on car, truck and any target with metal interface.
Besides, this vehicle tracker ML500 is a full featured GPS tracker which is designed for a wide variety of vehicle tracking applications. It is supported by the optional hard-wired car charger which for gain continous external power. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing its location to be monitored in real time or periodically tracked by a backend server and mobile devices around the worldwide! System integration is straightforward as complete documentation is provided for GPRS communication protocol. The GPRS communication protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, shock alarm and scheduled GPS position.
Specification:
* Dim: 92mm * 49mm * 30mm (3.62" * 1.94" * 1.18")
* Weight: 172g
* Network: 2G GSM/GPRS
* Band: 850/900/1800/1900Mhz
* GPS chipset: u-blox UBX-G7020
* GPS sensitivity: -162dBm
* GPS accuracy: 5-10m
* Wall charger: 110-220V input 5V-1A output
* Battery: Chargeable 3.7V 5000mAh Li-ion battery
* Standby time: 90days
* Working Temp.: -20°C to +75°C
* Humidity: 10%–85% RH non-condensing
* Support Micro Sim Card
* Temperature Sensor Scope: -20°C to +80°C
Main Features
1. GPS+LBS+BEIDOU Positioning Ways
2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!
3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!
4. Long Standby Time: It has built-in 3.7V 5000mAh Li-ion battery, can standby up to 90 days.
5. Powerful Magnetic: It has 6pcs built-in magnets,with super strong powerful magnetic,can be very easily installed.
6. Waterproof IP65: The waterproof level of this device is IP65, it can resist splash water but can't be put under water!
7. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.
8. Shock/Vibration Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.
9. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.
10. Geo-fence: Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
11. Our MiCODUS ML500 GPS Tracker has multiple working modes,you can switch the modes easily under different demands, this can help you to exxtend the battery life very much.
Tracking mode: GPS ON, Network Connected, static more than 5 minutes enter into sleep mode.
Power saving mode: GPS OFF, Netwrok Connected, upload data by specific interval , data can be acquired at any time.
Hibernation mode:GPS OFF, Network Disconnected , upload by specific interval, only tamper alarm can wake up device.
12. Temperature Monitor :
Our MiCODUS ML500 has built-in temperature sensor, it can detect the temperature of the surrounding environment, The error is within the reange of 1 to 2 degrees Celsius.
13. Teardown Alarm:
This tracker has built-in light sersor, after installed it , this fall off alarm funtion will be enabled automatically , then once someone take it away or the device dropped, the device will send " Teardown Alarm" message to SOS contact numbers and tracking platform.
14. Web Tracking Platform and Mobile APP: LIFETIME FREE ! Web server and both iOS and Android version APP are available!
Important Notice:
* This device just can work with 2G GSM network, and this item will not include Sim Card,please buy it from your local.
* Please make sure the GSM SIM card supports making calls, sending messages, GPRS network
* Please make sure the GSM SIM card has sufficient balance.
* Please make sure the GSM card has opened the call ID display function and turned off the call transfer.
* Please insert the GSM SIM card into the device correctly.
* Please use the Micro SIM card for the tracker.
Packing List:
1 * ML500 Main Unit
1 * USB Charging Cable
1 * User Manual
(No SD Card included)
