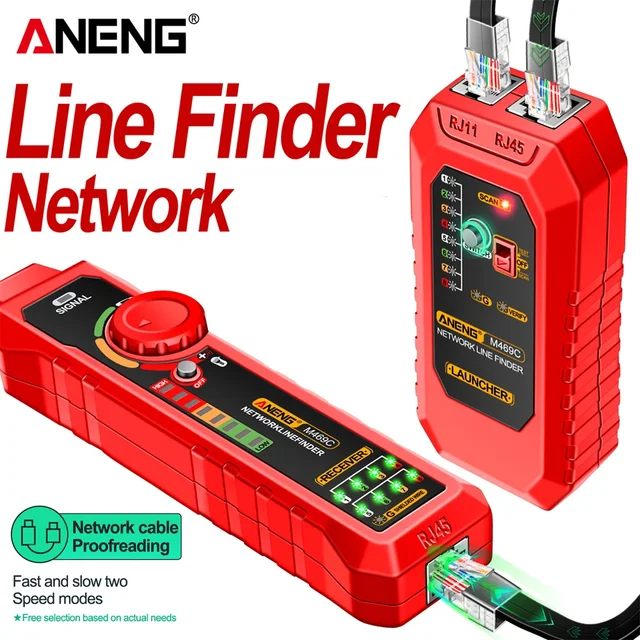

ANENG M469C Multifunction Network Cable Tester

R934.83

  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    The ANENG M469C is a versatile network cable tester equipped with features like telephone line search, open and short circuit tests, and low voltage warning. It’s a reliable tool for network repair and analysis.

    ANENG M469C Multifunction  Network Cable Finder RJ45 RJ11 LAN Cable Tester Networking Tool Trace Measure Network Repair Analyzer
    Feature:
    Telephone line search
    Network line search
    Check the power cable line
    Open and short circuit tests

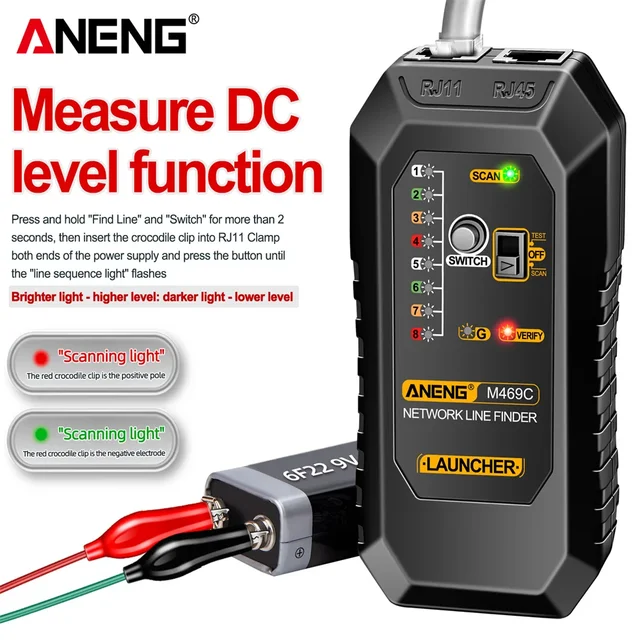

    Dc voltage test
    Low voltage warning
    The volume can be adjusted
    Headset listening

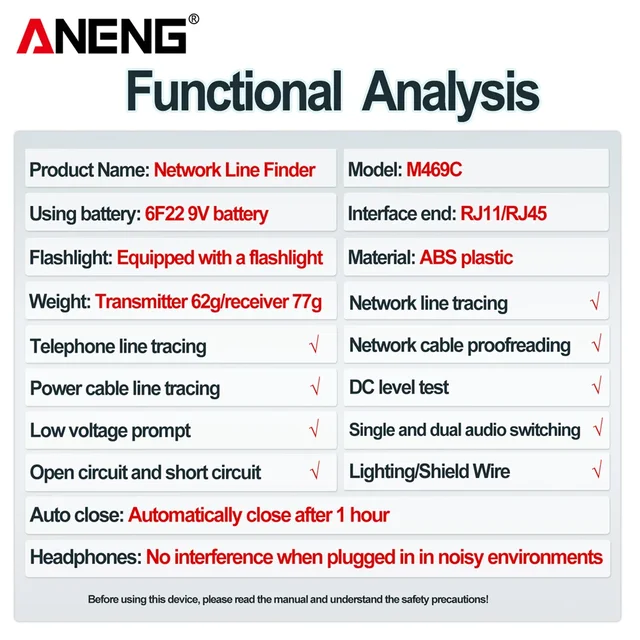

    Specification:

    Product Name: Network Line Finder

    Model: M469C

    Using battery: 6F22 9V battery(without shipment)

    Interface end: RJ11/RJ45

    Flashlight: Equipped with a flashlight

    Material: ABS plastic

    Weight:Transmitter 62g/receiver 77g

    Network line tracing                         √

    Telephone line tracing  √

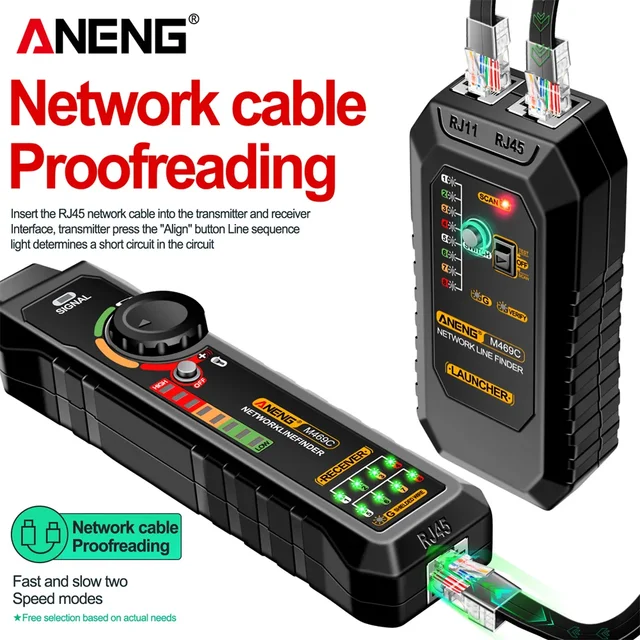

    Network cable proofreading          √

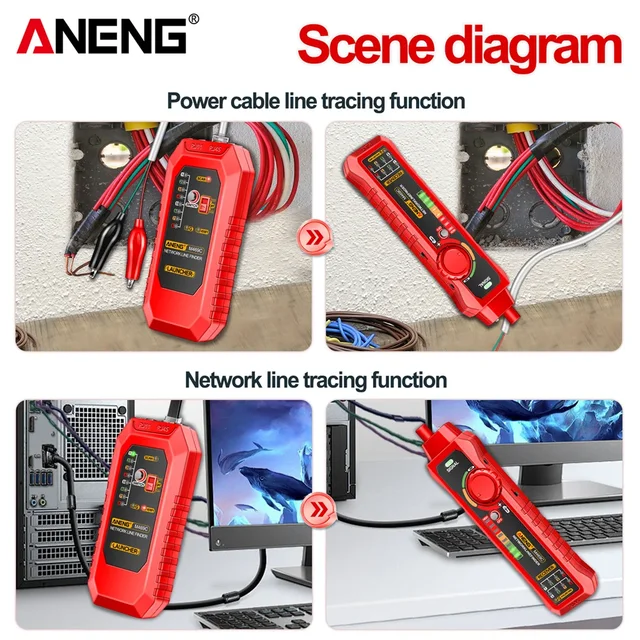

    Power cable line tracing                    √

    DC level test                                       √

    Low voltage prompt                             √

    Single and dual audio switching   √

    Open circuit and short circuit √

    Lighting/Shield Wire                       √

    Auto close: Automatically close after 1 hour

    Headphones: No interference when plugged in in noisy environments


    Package Include:     (Batteries without shipment)
    (1)Receiver
    (2)Transmitter
    (3)Headphones
    (4)RJ11 adapter
    (5) RJ45 adapter
    (6)Packaging box
    (7)English User manual
        Chinese User manual
    (8) Storage bag
    (9) Crocodile clip

    Usage Precautions:
    1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
    2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
    3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
    4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.
    5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
